Zidoo NEO S
The Zidoo NEO S is a state-of-the-art 4K (Ultra-HD) Android media player PC with the latest Android 9 operating system. The Realtek 1619DR hexa-core 64 A55 processor, specially optimized for media playback, supports the playback of 4K (Ultra HD) and 3D films (3D BD-ISOs) including the latest 11.1 HD audio formats such as Dolby Atmos, Auro 3D, Dolby True HD or DTS HD. And now brand new with Dolby Vision LLDV* and HDR10+. Make watching movies an exciting experience.
Advanced Dolby Vision LLDV* technology, supports high quality Dolby Vision low latency*（LLDV）output, the most suitable brightness can be output for images and scenes of each frame. The highlights are lighter while the shadows are darker, giving the best visual effect.
Supports automatic frame rate and resolution switching to ensure buttery smooth video playback.
Support Roon Ready, Spotify music streaming and DRM Widevine L1 to enjoy high quality online video playback.
With IOS and Android ZIDOO Controller APP, media players could easily control in the same LAN (power on and off can be controlled).
Main functions:
- Realtek 1619DR Hexa-core 64 A55 processor, 2GB memory, 256GB SSD ((M.2 SATA 3.0 2280, up to 1TB)
- XMOS+ESS 9068 professional Hi-Fi audio decoding chip support real DSD Native pass-through
- Large toroidal transformer for clean and powerful performance and better audio and video signal output
- Dual HDMI audio and video output, enjoy 4K and HD audio simultaneously without power amp.
- XLR output for left and right channel
- Break the Android SRC limit, supporting audio sampling rate up to 192K
- Android 9.0
- HDR10, HDR10+, Dolby Vision LLDV* 4K@60p HEVC/H.265 12Bit
- HDMI IN 2.0
- LAN:10/100M/1000M Ethernet
- Can play original BD ISO with menu
- Supports 2D, 3D movies
- Support 802.11 a/b/g/n 2.4G/5.8G ac Dual Band WIFI
- Supports 11.1 Dolby True HD ,DTS-HD MA ,LPCM ,Dolby Digital,Auro 3D,Dolby ATMOS, DTS:X
- HDD File Formats: Support FAT32,NTFS, EXT3, EXT4, HFS
- USB hard drives sizes up to 16TB are supported
- Bluetooth BT 4.2
Specifications:
Model NO: NEO S
Hardware:
CPU: Realtek RTD1619DR ARM Cortex-A55
RAM: 2GB DDR4
Storage: 256GB SSD (M.2 SATA 3.0 2280, Up to 1TB)
Dimensions: 213 x 292 x 101mm
Interface:
Video output: HDMI 2.0a (4K@60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output)
Wireless: 802.11 a/b/g/n 2.4G/5.8G ac Dual Band WIFI
LAN :10/100M/1000M Ethernet
Audio Output (Decoding): Support high-definition panoramic sound audio pass-through and stereo decoding output, XMOS+ESS 9068 hardware decoding

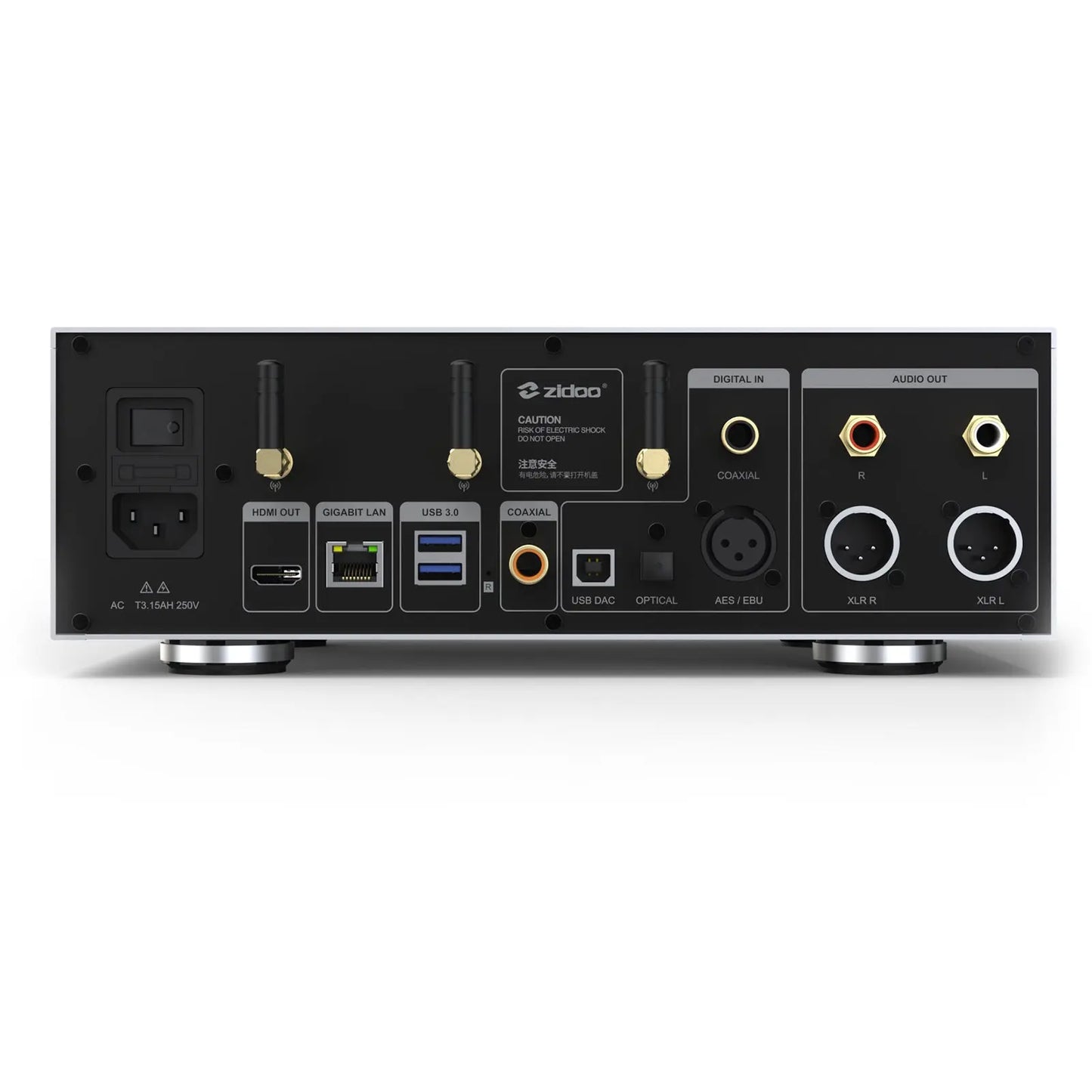

Audio outputs:
- optical output (2CH, 5.1CH)
- coaxial output,
- RCA left and right
- XLR balanced left and right
Frequency Response: 20Hz-20KHz +/-0.25dB
Signal to noise ratio (SNR)>118dBrA
Total Distortion + Noise (THD+N) < 0.0003%
Output level (XLR) 4.5 ± 0.4Vrms. (RCA) 2.2±0.2Vrms
Dynamic Range (DNR) >118dB Channel Resolution (Crosstalk) -126BrA
USB ports: 2x USB 3.0 , 2x USB 2.0
AES/EBU
Power input: 230V /110V
Android systems:
Android version: Android 9
File Systems : FAT16/FAT32/exFAT/NTFS/HFS+/Samba/EXT2/3/4
Menu languages : German/English/Spanish/France/Italia/Nederland/Poland/Russia
Firmware Upgrade: Via internet or USB port
Video streaming: HTTP RTSP
Supported formats:
Media:
Video containers:
RM/RMVB
MPEG1/2/4 Elementary(M1V,M2V,M4V)
MPEG1/2PS(M2P,MPG)
MPEG2 Transport Stream(TS,TP,TRP,M2T,M2TS,MTS)
VOD
AVI, ASF, WMV
Matroska(MKV)
MOV(H.264),MP4,RMP4
ifo
DVD ISO,BD ISO
MINI BD ,BD-9,BD25,RBD, D5, D9, DVD,CD
FLV
swf(.swf)
3GP/.3gp
AVS/(.avs)
3D Bluray(DISC/ISO) or Single File(*.ts/*.m2ts)
Audio:
aac,mp4,m4a
MPEG audio(mp1,mp2,mp3,mpa)
wav/wma ,asf/ogg/ape/flac/amr,3ga/ra,rm,rmvb,ram
Image formats: JPEG ,BMP, PNG, GIF ,TIFF, Webp(Android)
Subtitles: MicroDVD[.sub], SubRip[.srt], Sub Station Alpha[.ssa], Sami[.smi], VobSub[.idx+.sub], Advance
SubStation Alpha[.ass]
Subtitle languages : Standard version , simplified Chinese, traditional Chinese, Turkish ,Greek ,Hebrew, Czech, SE European ,Central European , Cyrillic, Western, UTF8
Menu language: Standard version , simplified Chinese, traditional Chinese, Enghlish , Russian ,Spanish, Czech, Dutch ,Italian ,Franch ,German, Turkish, Hebrew, and so on
HDD File Formats: Support FAT32,NTFS, EXT3, EXT4, HFS
Scope of delivery:
Zidoo NEO S
remote control
HDMI cable
operation manual
power cord
