function overview
- New generation Amlogic S928X-K 64-bit A76 + Quad-Core A55 high-performance multifunction processor.
- 6GB DDR4 RAM + 64GB eMMC storage for smooth operation, meets the requirements for installing numerous applications.
- HDMI 2.1® supports 8K 60Hz point-to-point output, supports HDR (HDR10/HLG/HDR10+/Dolby Vision).
- Supports AV1/VP9/H.265/AVS3/AVS2 video codecs, 12-bit, BT.2020 wide color gamut; supports Atmos/DTS X audio passthrough output.
- Built-in VS10 image quality engine is highly customizable and greatly improves image quality by custom mapping different video modes.
- Built-in HDD tray (SATA 3.5), supports loading 16TB SATA hard disk; also supports external CD-ROM to play original CDs.
- New Poster Wall 4.0 supports movie trailers as well as user-friendly custom classification and management.
- Supports lossless music playback in formats such as DSD (SACD ISO, DSF, DFF), WAV, APE, DTS.
- Updated music player 8.0 with brand new UI main interface, supports lossless playback and decoding, personalized settings, song data matching.
- Supports various music streaming methods such as DLNA, Tidal Connect, etc.
- Smooth Android 11 operating system greatly improves system performance and stability.
- Processing of HDR10 still metadata (MaxFall, MaxCll) more precisely, showing higher brightness and deeper black levels.
- Supports the capture and processing of HDR10+ dynamic metadata, colors and brightness are processed frame by frame and scene by scene.
- Advanced Dolby Vision technology supports LLDV (Player Led) and Standard Mode (TV Led) output.
- Automatic frame rate 23.976 and resolution switching output ensures smooth movie playback without interruption (supports local playback and online streaming).
- Supports BD/UHD Blu-ray menu playback and seamless branch playback of Blu-rays with complex MPLS structure.
- Supports special effect subtitles, automatic downloading of network subtitles; supports double forced subtitles for Blu-ray and MKV.
- Supports access to network protocols such as NFS, SMB v1/v2/v3, UPnP, Web DAV and integrated SMB service.
- Supports standard WOL function; supports power on and standby settings.
- Supports HDMI 2.1® CEC control, RS232 control, Control 4, seamless integration into the smart home.
- Supports exclusive Zidoo Controller APP for iOS and Android mobile phones, iPad landscape mode and Android tablet landscape mode, which can seamlessly play and control Zidoo media players.
specifications
Model : Z30 PRO
Display Screen : LED
Housing : aluminum alloy
Operating system : Android 11
CPU : Amlogic S928X-K ARM Cortex-A76+Cortex-A55 (Quad-Core)
GPU : ARM Mali-G57 MC2
RAM : 6GB DDR4
Internal memory : 64GB eMMC
Bluetooth : BT 5.2
WiFi : 2.4G + 5G dual band WiFi, 802.11 a/b/g/n/AC/AX 2T2R, 802.11ax MIMO OFDM
Ethernet : RJ-45 Ethernet port (10/100/1000Mbps) * 1
HDMI output : HDMI 2.1a, supports up to 8K@60p, HDR10+, 12-bit color depth, BT2020 wide color space; supports HDR10, HDR10+, HLG, Dolby Vision; supports Dolby Atmos and DTS X audio passthrough
Video decoding : 8K@60p AV1/VP9/H.265/AVS3/AVS2; HDR10, HDR10+, HLG, Dolby Vision
Audio Decoding : Supports Dolby/DTS format (supports up to Dolby TrueHD Atmos and DTS X) decoding

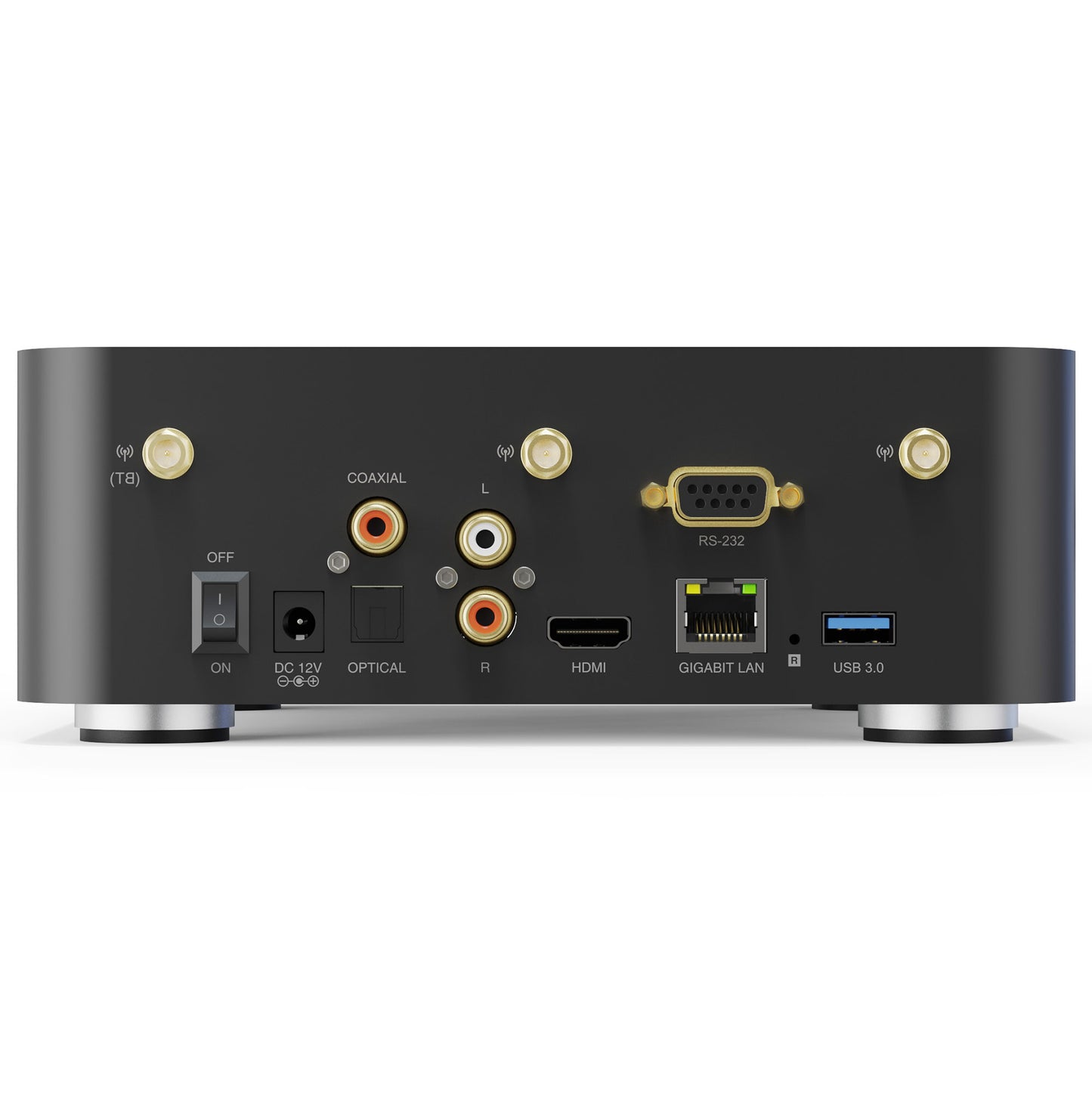

Audio Output : USB Output, Optical Output * 1, Coaxial Output * 1, RCA L/R Channel Output * 1
Intelligent Control : APP control for iPhone, iPad landscape mode, Android phone, Android tablet landscape mode, RS-232, TCP/IP control (support WOL)
SATA : SATA 3.0 * 1
USB : USB 3.0*3, USB 2.0*2
Power supply : DC 12V/2A
Other interfaces : Infrared receiver * 1, RS232 * 1
Accessories : Remote Control * 1, Power Adapter * 1, SATA Cable * 1, HDMI Cable * 1, High Gain Antennas * 3, User Manual * 1
Dimensions : L * W * H: 197mm x 197mm x 64.8mm
